Mast Climber Platforms

Lifts 22 000 lb (9,979 kg) at 3′ (0,9 m) / min.

Manufacturer

Hydro Mobile

Description

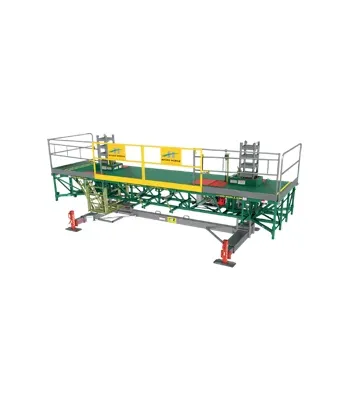

The M Series gas over hydraulics power, ratchet type drive mast climber was the first to be introduced to the market and is still considered North America’s masonry workhorse. With a 7′ wide work deck, lower level plank outriggers, a 16 600 lb payload on 64′ (single) and a 30 000 lb payload on 148′ (twin), this system creates the ultimate condition for your masons and laborers to outperform your competition.

Not only can the M Series handle masonry construction challenges, it brute power and design helps contractors complete industrial jobs where weight capacity and safety is of prime importance.

Climbing Speed: 3’ (0,9 m) / min

Specification

Mast Setup	Length	Load Cap.
SINGLE	24’ (7,3 m) (minimum) 64’ (19,5 m) (maximum)	22 000 lb (9,979 kg) 16 600 lb (7,530 kg)
TWIN	58’ (17,7 m) (minimum) 148’ (45,1 m) (maximum)	42 000 lb (19,051 kg) 30 000 lb (13,603 kg)

Lifts 7 500 lb (3,402 kg) at 7′ (2,1 m) / min.

Manufacturer

Hydro Mobile

Description

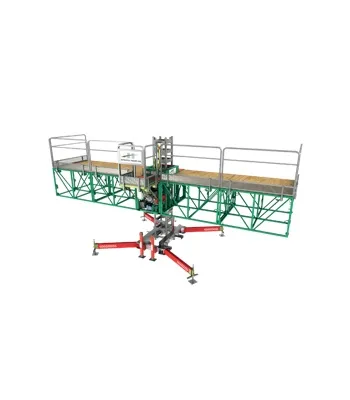

The P Series gas over hydraulics power, ratchet type drive mast climber is our most versatile and mobile access tool. Using a 3′ wide motor unit and a combination of 3′ or 5′ wide modular bridges, the P Series can pass through narrow openings and be hand assembled in difficult to access areas inside or outside of a building. Despite its smaller size, this unit can still handle a 6 000 lb payload on 28′ (single) and 10 000 lb on 84′ (twin).

Over the last decade, construction trades have discovered the labor savings and job safety benefits of using a small but very powerful P Series mast climber in areas they could not have imagined.

Climbing Speed: up to 7′ (2,1 m) / min

Specification

Mast Setup	Length	Load Cap.
SINGLE	7′-5″ (2,3 m) (minimum) 27’-5‘’ (8,4 m) (maximum)	7 500 lb (3,402 kg) 6 000 lb (2,722 kg)
TWIN	63’-4’’ (19,3 m) (minimum) 83’-4’’ (25,4 m) (maximum)	10 500 lb (4,763 kg) 9 750 lb (4,422 kg)

Lifts 12 000 lb (5,443 kg) at 38′ (11,6 m) / min.

Manufacturer

Hydro Mobile

Description

The F Series gas over hydraulics power, rack & pinion drive mast climber is specifically designed to handle high rise multi-trade projects. This unit can handle 9 000 lb of material, men and their tools at a continuous speed of 19′ / min (F200) or 38′ / min (F300) in a 50′ wide configuration. The F Series can also be used in twin mode to handle a 15 500 lb payload on 115′.

When coupled with our multiple accessories, This F Series is, by far, the most effective tool for high rise multi-trade jobs on the market today.

Climbing Speed: F200 19’ (5,8 m) / min F300 38’ (11,6 m) / min

Specification

Mast Setup	Length	Load Cap.
SINGLE	20′ (6,1 m) (minimum) 50’ (15,2 m) (maximum)	12 000 lb (5,443 kg) 9 000 lb (4,082 kg)
TWIN	40′ (12,2 m) (minimum)) 115′ (35 m) (maximum)	12 000 lb (5,443 kg) 15 500 lb (7,031 kg)

Lifts 11 000 lb (4,990 kg) at 30′ (9,1 m) / min.

Manufacturer

Hydro Mobile

Description

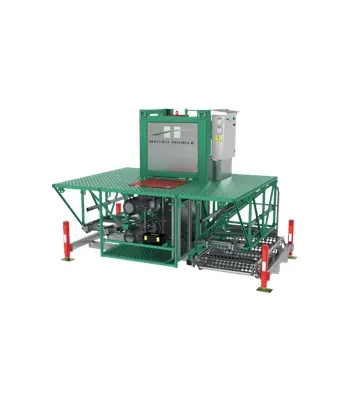

The S Series is our most recently engineered and perfected mast climbing work platform. With its two 240V, 3 phase electric motors, this rack & pinion drive unit embodies environmental cleanliness, ease of use, simple maintenance and the smoothest ride you can imagine!

The S Series can handle 8 000 lb of material, men and their tools at a continuous speed of 30′ / min in a 50′ (single) configuration. It can also be stretched out to 60′ (single) to handle a payload of 5 800 lb or 120′ (twin) for 13 000 lb. The S Series, when coupled with our multiple accessories is, by far, the most effective tool for high rise multi-trade jobs on the market today.

Climbing Speed: 30′ (9,1 m) / min

Specification

Mast Setup	Length	Load Cap.
SINGLE	20′ (6,1 m) (minimum) 60′ (18,3 m) (maximum)	10 400 lb (4,717 kg) 5 800 lb (2,631 kg)
TWIN	50′ (15,2 m) (minimum) 120′ (36,6 m) (maximum)	8 250 lb (3,742 kg) 13 000 lb (5,897 kg)
