Specification
| Dimension | Lock Style | Lock Spacing | Weight |
|---|---|---|---|
| 5’W X 6’6”H | V Drop Lock | 4’ | 41.7LBS(19Kg) |
| 4’W X 6’6”H | C Lock | 27-3/4” | 55.8LBS (25.3Kg) |
| 3’W X 6’6”H | C Lock | 27-3/4” | 51.5LBS (23.3Kg) |
Scaffold Systems
Typical walk-through frames
Scaffold Frame
Specification
| Dimension | Product | Lock Style | Lock Spacing | Weight |
|---|---|---|---|---|
| 5’ W X 5’ H | Access Frame | Flip Lock | 4’ | 40.8LBS(18.5Kg) |
| 30” X 5’ H | Ladder Frame | Flip Lock | 4’ | 29.7LBS (13.5Kg) |
| 5’ W X 3’ H | Access Frame | Flip Lock | 4’ | 29.5LBS (13.4Kg) |
| 5’ W X 5’ H | Step Frame | C Lock | 27-3/4” | 40.5LBS(18.4Kg) |
Braces – Punched Hole Style
Specification
| Span Between Frames | Frame Stud Spacing | Weight |
|---|---|---|
| 7’ | 2’ | 10.4LBS(4.7Kg) |
| 10’ | 2’ | 14.6LBS(6.6Kg) |
| 5’ | 4’ | 9.2LBS(4.2Kg) |
| 7’ | 4’ | 11.5LBS(5.2Kg) |
| 10’ | 4’ | 15.3LBS(6.9Kg) |
| 7’ | 27-3/4” | 10.6LBS(4.8Kg) |
| 10’ | 27-3/4” | 14.6LBS(6.6Kg) |
Tubeloc
Specification
Made of 1.90” OD tube.
Hot dip galvanized finish
Length: 2-1/2” , 5’, 8’, 10’, 12’, 13’, 15’, 16’, and 20’.
Heavy duty swivel clamp
Specification
Spec: 1.90” X 1.90 ”
Eye Bolt
Hot dip galvanize or electro plating
Piece Weight: 1.75 Kg
Heavy duty right angle clamp
Specification
Spec: 1.90” X 1.90 ”
Eye Bolt
Hot dip galvanize or electro plating
Piece Weight: 1.65 Kg
Spigot half coupler
Specification
Spec: 1.90”
Hot dip galvanize or electro plating
Piece Weight: 1.5 Kg
Rigid beam clamp
Specification
Spec: 1.90”
Hot dip galvanize or electro plating
Piece Weight: 1.7 Kg
Rigid wedge coupler clamp
Specification
Spec: 1.90”
Hot dip galvanize or electro plating
Piece Weight: 1.5 Kg
Swivel wedge coupler clamp
Specification
Spec: 1.90”
Hot dip galvanize or electro plating
Piece Weight: 1.6 Kg
End to end connector
Specification
Spec: 1.90” X 1.90”
Hot dip galvanize or electro plating
Piece Weight: 1.0 Kg

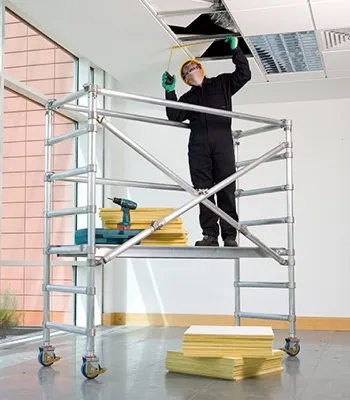

Instant Snappy
Manufacturer
Instant Upright
Description
Instant Snappy is a lightweight, heavy duty folding work platform. Consisting of a one piece folding frame plus platform and castors, Snappy provides instant low level access which can be assembled in seconds. Users have a choice of platform positions up to a working height of 4m.
- High strength aluminum construction
- Cold formed Rib-Grip Joints
- Choice of platform positions
- Folding one piece frame plus platform
- Heavy duty 360 degrees castors
- Compact and portable
- Automatic locking brace hooks

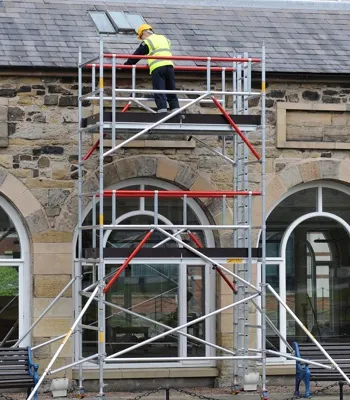

Instant Span Towers
Manufacturer
Instant Upright
Benefits
- High strength aluminum alloy construction
- Cold formed Rib-Grip Joints
- Automatic Locking Brace
- Color coded Braces
- Heavy duty cast aluminum hooks with Rhino nose
- Fluted frames rungs
- Reversible multi-purpose frames
- Automatic quick adjust leg hooks
- VX One piece base unit

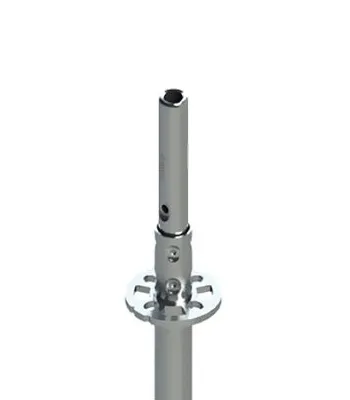

Standards
Specification
| Material | High strength alloyed steel tubes punched rosette ( 0.395”/ 10mm THICK ) |
| Tube & Rosette | Min. Yield 50KSI, min. Tensile 65KSI, Elongation 20% |
| Tube Dimension | 1.900” O.D. X 0.125 ”W. T. ( 48.6 mm X 3.2 mm ) |
| Surface Finish | Hot dipped galvanized ( 0.0024” / 0.06mm ZINC COATING ) |
| Description | Weight |
|---|---|
| Vertical 1’8″ (0.5 M) | 7.1LBS/3.2Kgs |
| Vertical 3’3″(1.0 M) | 12.2LBS/5.5Kgs |
| Vertical 4’11” (1.5 M) | 17.7LBS/8.0Kgs |
| Vertical 6’6″ (2.0 M) | 23.6LBS/10.7Kgs |
| Vertical 8’2″ (2.5 M) | 28.3LBS/12.8Kgs |
| Vertical 9’9″ (3.0 M) | 33.8LBS/15.3Kgs |
Ledger
Specification
| Description | Weight |
|---|---|
| Ledger 1′ (0.305M) | 4.0LBS/1.8Kgs |
| Ledger 1’4″ (0.406M) | 5.0LBS/2.3Kgs |
| Ledger 2’2″ (0.650M) | 7.2LBS/3.3Kgs |
| Ledger 2’10” (0.88M) | 8.6LBS/3.9Kgs |
| Ledger 3’6″ (1.065M) | 10.4LBS/4.7Kgs |
| Ledger 3’10” (1.150M) | 11.0LBS/5.0Kgs |
| Ledger 4′ (1.219M) | 11.4LBS/5.2Kgs |
| Ledger 5’2″ (1.572M) | 15.4LBS/7.0Kgs |
| Ledger 5’4″ (1.626M) | 14.8LBS/6.7Kgs |
| Ledger 7′ (2.130M) | 19.8LBS/9.0Kgs |
| Ledger 10′ (3.050M) | 28.2LBS/12.8Kgs |

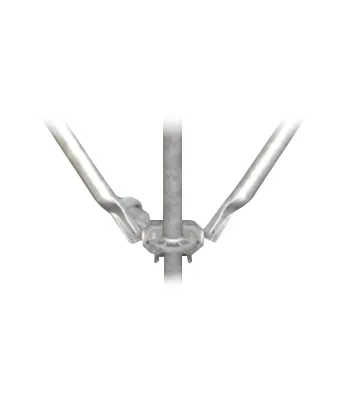

Diagonal Brace
Specification
| Description | Weight |
|---|---|
| Diagonal Brace 2’11” (0.88M) | 21.8LBS/9.82Kgs |
| Diagonal Brace 3’10” (1.150M) | 22.7LBS/10.3Kgs |
| Diagonal Brace 5’2″ (1.572M) | 24.6LBS/11.1Kgs |
| Diagonal Brace 7′ (2.130M) | 27.6LBS/12.5Kgs |
| Diagonal Brace 10′ (3.050M) | 33.6LBS/15.2Kgs |

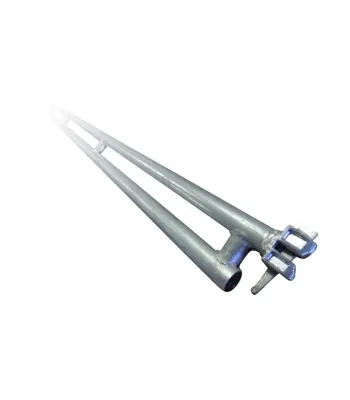

Double Ledger
Specification
| Description | Weight |
|---|---|
| Double Ledger 5’2” (1.572 M) | 25.2LBS/11.4Kgs |
| Double Ledger 7’ (2.130M) | 34LBS/15.4Kgs |
| Double Ledger 10’ (3.050M) | 48.9LBS/22.2Kgs |

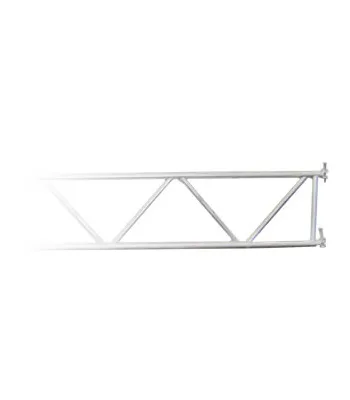

Truss Ledger
Specification
| Description | Weight |
|---|---|
| Truss Ledger 5’2” (1.572 M) | 25.2LBS/11.4Kgs |
| Truss Ledger 7’ (2.130M) | 34LBS/15.4Kgs |
| Truss Ledger 10’ (3.050M) | 48.9LBS/22.2Kgs |

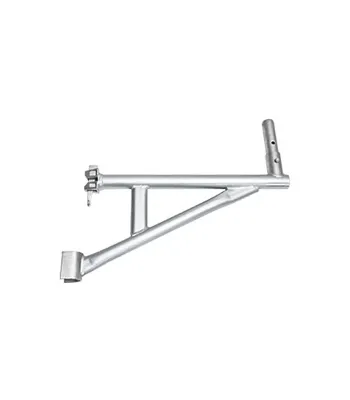

Side Bracket
Specification
| Description | Weight |
|---|---|
| Side Bracket 1’3” (0.40M) | 11.6LBS/5.23Kgs |
| Side Bracket 2’2” (0.65M) | 13.9LBS/6.30Kgs |
| Side Bracket 2’10” (0.88M) | 17.4LBS/7.87Kgs |
| Side Bracket 3’10” (1.15M) | 32.0LBS/14.6Kgs |

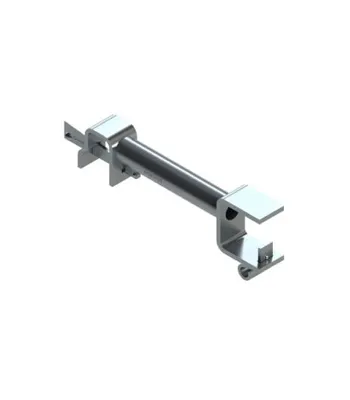

Transom Ledger
Specification
| Description | Weight |
|---|---|
| Mid Transom 3’10” (1.15M) | 15LBS/7Kgs |
| Mid Transom 5’2” (1.57M) | 18LBS/8.5Kgs |
| Mid Transom 5’4” (1.62M) | 19LBS/8.7Kgs |
| Mid Transom 7’ (2.13M ) | 23LBS/10.5Kgs |
